Exporting SICLIMAT X Data

  • You have prepared graphics for export.
  1. Log on to the console as the sicx user.
  1. Do one of the following:
  • Run the siclimat_export_repo script, to create an export repository.
  • Run the siclimat_export_repo-change, to create an export repository and to change the Siclimat X technological objectname with the object username in the export, so during the import in Desigo CC the Siclimat X object username is used to build up the hierarchy of the logical view and not the technological objectname.
  • Run the siclimat_export_repo --zip script, to create a zip archive which contains the export repository.
  • An export repository with all export files (data points, graphics, scripts, service tests, system information report) is created. The directory name has the format sicx_repo_<date>_<time>.
  1. (Optional) Run the siclimat_export_repo script with the --help option, to see all options.

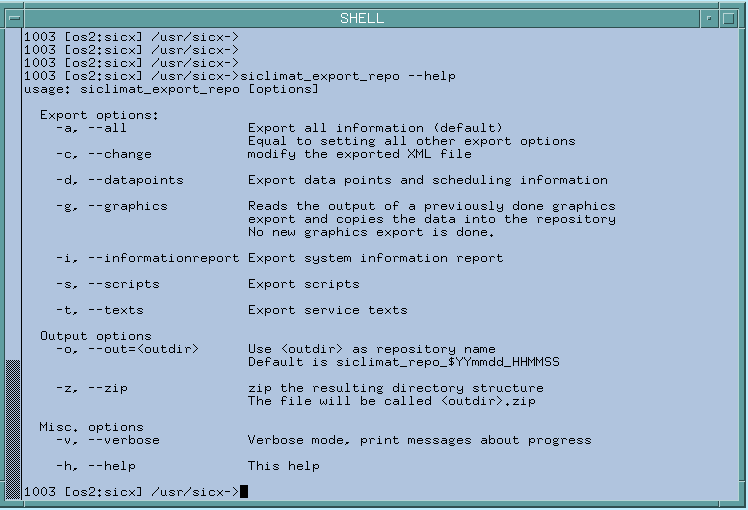

Run siclimat_export_repo --help to see all options
