Enable Events at Object Model Level for All the Scalance Devices

Use this method to modify the alarm configuration for all the Scalance devices that are based on a specific object model.

  • You are trained and authorized to work with system libraries at the target customization level where you want to enable events.
  1. Select Project > System Settings > Libraries > L1-Headquarter > Building Infrastructure > Device > Scalance > Object Model > [device object model] among the following:
  • GMS_SNMP_Scalance_S615_150
  • GMS_SNMP_Scalance_XB-200_150
  • GMS_SNMP_Scalance_XB-208_150
  • GMS_SNMP_Scalance_XC-200_150
  • GMS_SNMP_Scalance_XC-224_150
  • GMS_SNMP_Scalance_XM-400_150
  1. In the Models & Functions tab, click Customize .
    NOTE: This icon is unavailable if the selected object model is already customized. In this case, skip to step 4.
  1. Click OK.
  • The selected object model is cloned in the corresponding position within the structure of the customized library, at the allowed customization level.
  1. Select the customized object model. For example, Project > System Settings > Libraries > L4-Project > Building Infrastructure > Device > Scalance > Object Model > [device object model].
  1. In the Models & Functions tab, close the Main expander and open the Properties expander.
  1. In the list on the left, select the Property for which you want to enable the event. For example:
  • SystemStatus
  • InterfaceOperationalState1
  • InterfaceOperationalState2
  • InterfaceOperationalState3
  • InterfaceOperationalState4
  • InterfaceOperationalState5
  • InterfaceOperationalState6
  • InterfaceOperationalState7
  • InterfaceOperationalState8
  • InterfaceOperationalStateAdditional1
  • InterfaceOperationalStateAdditional2
  • InterfaceOperationalStateAdditional3
  • InterfaceOperationalStateAdditional4
  • SpanningTreeEdgeOperationalState1
  • SpanningTreeEdgeOperationalState2
  • SpanningTreeEdgeOperationalState3
  • SpanningTreeEdgeOperationalState4
  • SpanningTreeEdgeOperationalState5
  • SpanningTreeEdgeOperationalState6
  • SpanningTreeEdgeOperationalState7
  • SpanningTreeEdgeOperationalState8
  • The Details, Alarm Configuration and other expanders on the right update to show the settings of the selected property.
  1. In the Alarm Configuration expander, select the Alarm config.activated check box.
  1. Click Save .
  • The modified alarm configuration will apply to all the Scalance devices that are based on this object model.

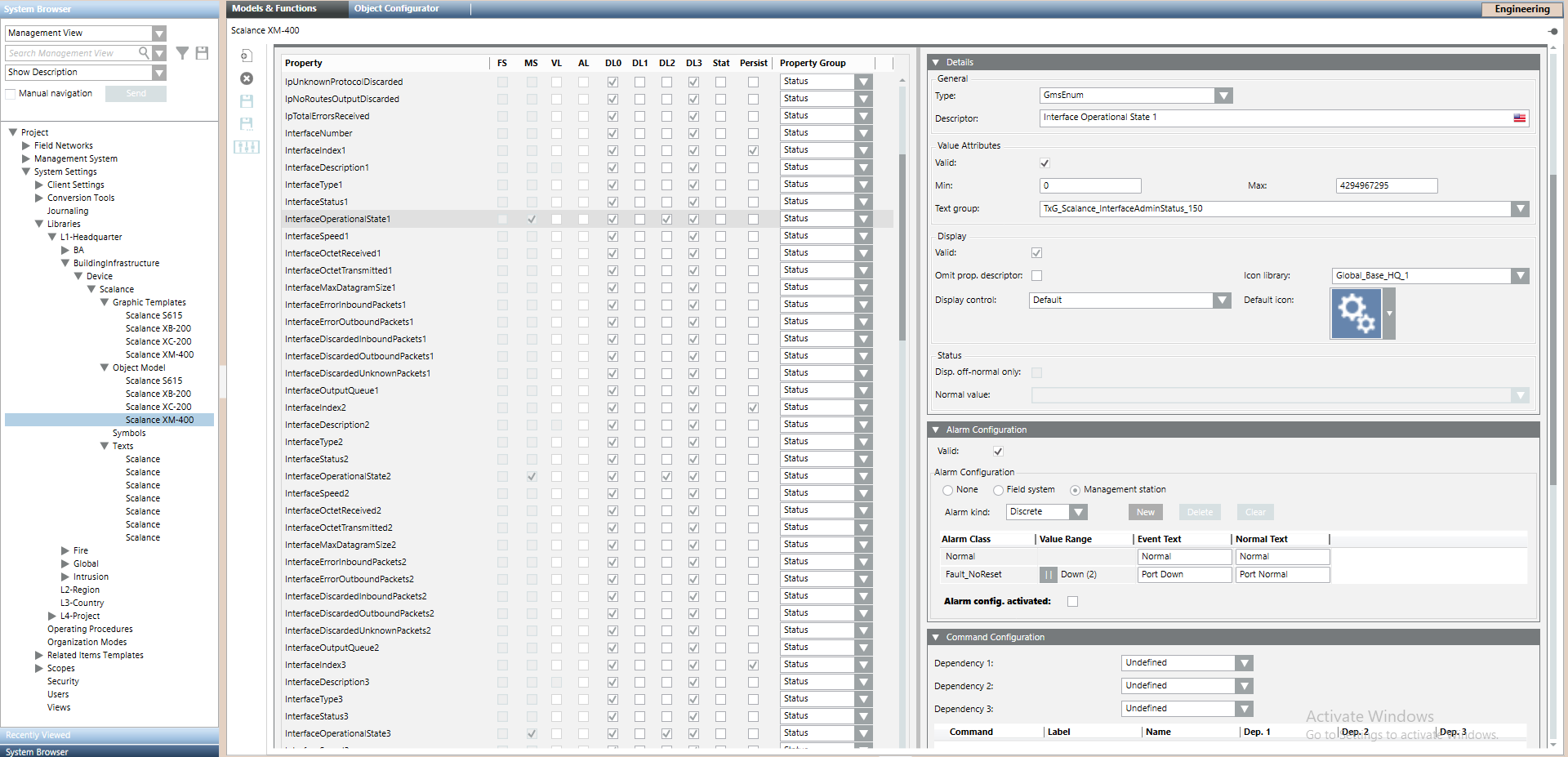

Enabling Events for the Scalance XM-400 Object Model
