Mval Alarm Compliance Summary Report

This report is designed to show the Alarm, Warning and Fault compliance. For example, compliance of MVal TLO objects based on predefined MVal values: 1 (Normal), 2 (Fault), 3-4 (Warning), 5-6 (Alarm).

A dedicated view includes points of the same type (such as, Temperature, Humidity, Pressure, and so on) grouped under the same parent node, on which the report will be executed.

The report can be adjusted by modifying the time range with other standard time ranges already available for Advanced Report. In particular, for each Sample Point, this report reflects the data as follows:

• Number (No. for the selected period) of Samples/Alarms/Warnings/Faults
• Percentage (% for the selected period) of Alarms/Warnings/Faults
• Percentage of Compliance (100% – percentage of samples in the selected period) of Alarms/Warnings/Faults

The number of Samples as well as the No. of Alarms/Warnings/Faults are based on the content of the TLO.

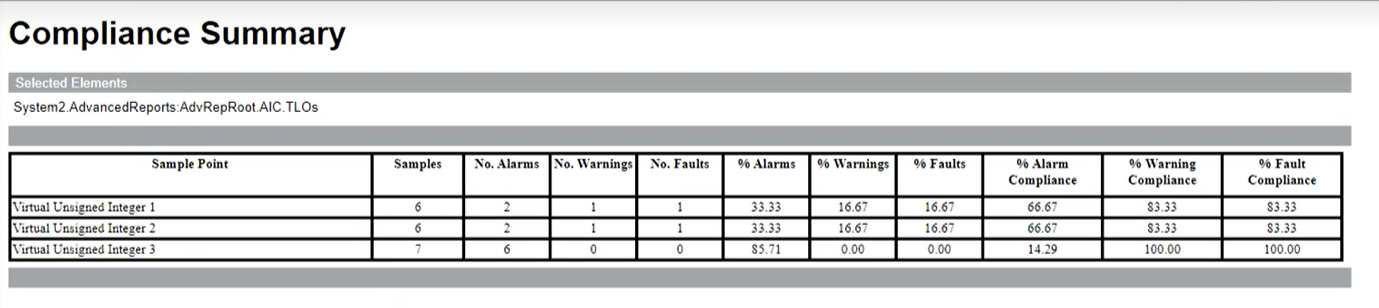

Sample report
