Mapping Custom SICLIMAT X Graphics to Management Platform Graphics

  1. You have exported graphics from SICLIMAT X.
  1. Check the System Information Report for custom graphics. For example, 0_VE_EP is a custom graphic.
  3. If there is no equivalent Desigo CC graphic to the custom graphic, create a function and the corresponding symbol for the custom graphic.
  4. In System Browser, select Management View.

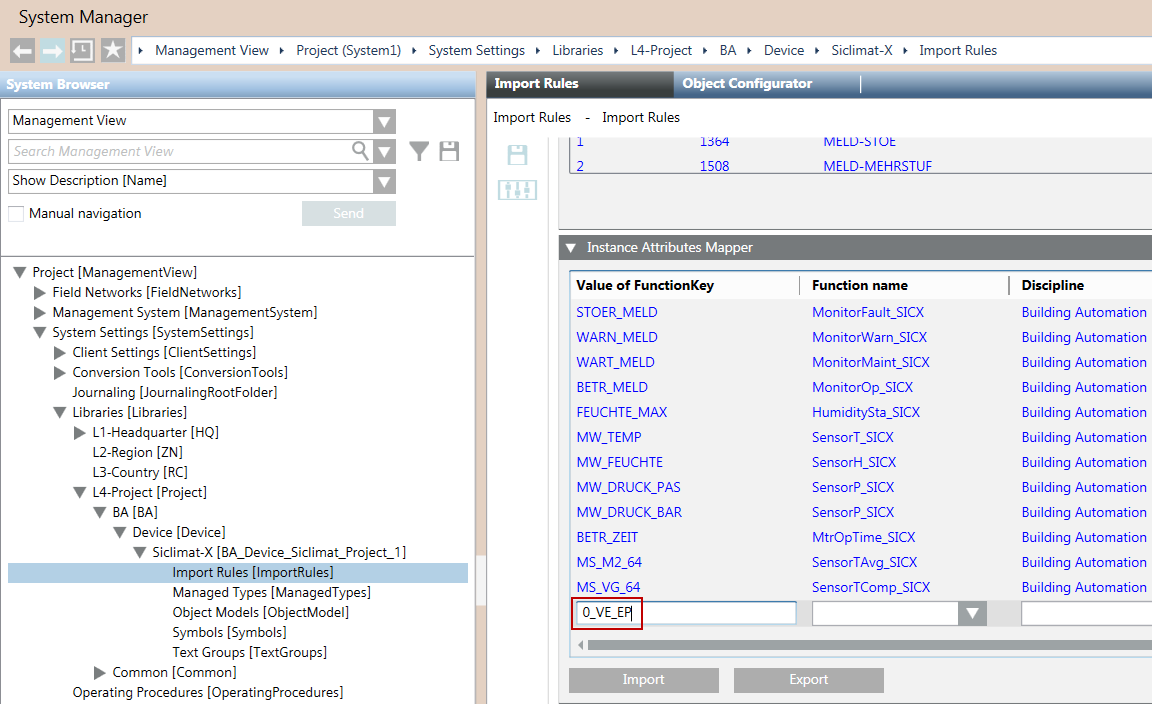

  5. Select Project > System Settings > Libraries > [L4-Project] > BA > Device > Siclimat X > Import Rules.
  6. In the Import Rules tab, open the Instance Attributes Mapper expander.
  7. Click Add to add a new row.
  8. In the Value of Function Key field, enter the name of the custom graphic, for example 0_VE_EP.
  10. In the Function name field, select the function you want to map to the custom graphic.
  11. In the Discipline, Subdiscipline, Type, and Subtype fields, select the desired entries.
  12. Click Save.
