Check Objects with Group Address Configured

To get the list of all the KNX objects with group address included in the configuration file, and select the ones you want to import, do the following:

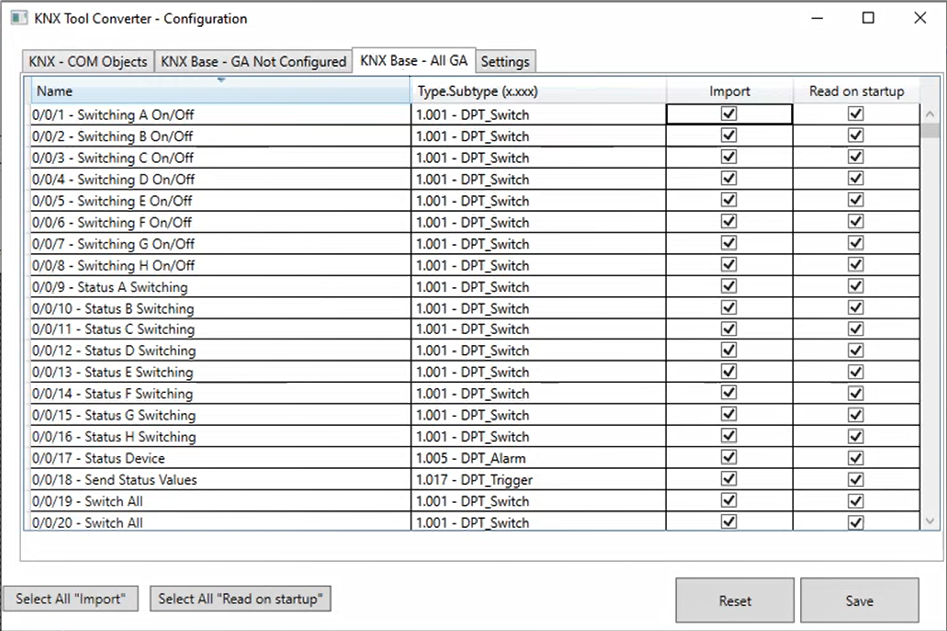

1. Select the KNX Base – All GA tab.

• Click the Name or Type.Subtype (x.xxx) column to sort the list of objects accordingly, in the ascending or descending order.

2. In the Import column, select the check box that corresponds to the specific KNX objects to import into Desigo CC.
   NOTE: To select all the KNX objects in the list for the import into Desigo CC, click Select All “Import”.

3. In the Read on startup column, select the check box that corresponds to the KNX objects whose data will be retrieved when the adapter is started.
   NOTE: To select all the KNX objects in the list whose data will be retrieved when the adapter is started, click Select All “Read on startup”.
