Set Locale and Other Parameters

To adjust any additional settings, do the following:

  1. Select the Settings tab.

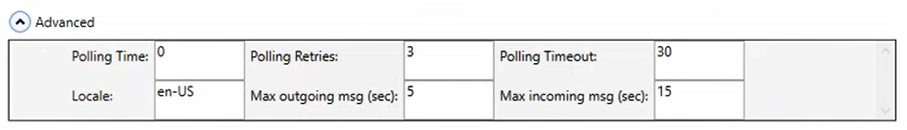

  1. Click Advanced, and adjust one or more of the following settings as required:
  • Polling Time (interval of seconds after which the KNX adapter checks whether each KNX device is connected. Default is 0.)
  • Polling Retries (number of retries after which the KNX adapter considers not connected a KNX device that stops responding.)
  • Polling Timeout (interval of seconds after which each KNX device must reply to the KNX adapter’s request.)
  • Locale (en-US is the default language)
  • Max outgoing msg (sec) (maximum number of messages that KNX receives from Desigo CC every second.)
  • Max incoming msg (sec) (maximum number of messages that Desigo CC receives from KNX every second.)
