Configure the Absolute Energy Report

  1. You have selected the Absolute Energy report type for configuration.

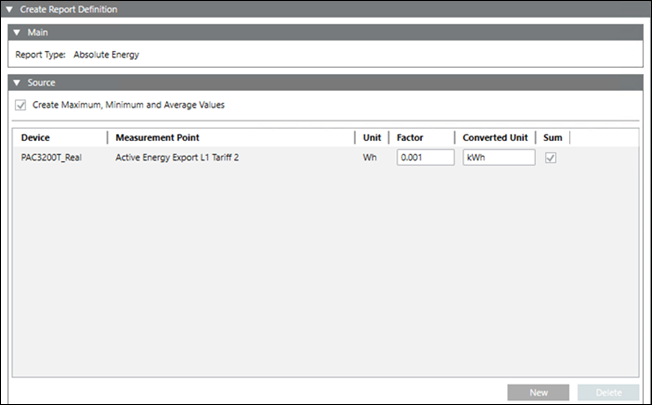

  • The Report Definition configuration page displays.
  1. In the Source expander, select the Create Maximum, Minimum and Average Values check box.
  1. Click New to add a new device.
  1. Select a device from the Device drop-down list for which the report needs to be generated.
    NOTE: You can add multiple devices and generate the Absolute Energy report.
  1. Enter values into the following columns:
    a. Select the required measurement point from the drop-down list under the Measurement Point column.
    b. Unit
    c. Factor
    d. Converted Unit
  1. (Optional) Select the Sum check box to display the summation of the selected measuring points.
  1. Click Save .
    NOTE: If the selected measurement point is not archived, a warning message will be displayed. You can save the report definition with warning. However, if the measurement points are not archived, the generated reports will not have any values.
  • The Save Object As dialog box displays.
  1. Enter a name and description and click OK.
  • The Absolute Energy report definition is configured.
