Configure the Cost Center Report

  1. You have selected the Cost Center report type for configuration.

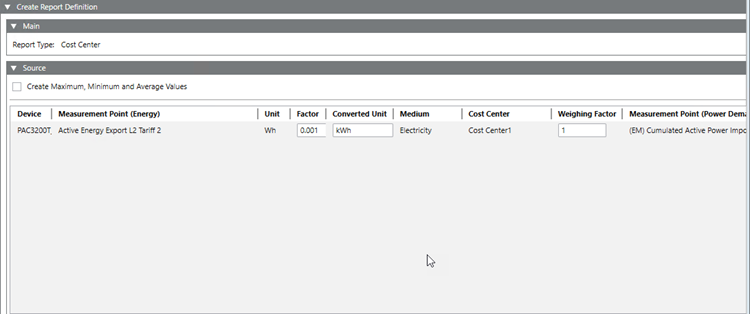

  • The Report Definition configuration page displays.
  1. In the Source expander, the Create Maximum, Minimum and Average Values check box is unchecked by default. Select this check box to include the maximum minimum and average values in the report.
  1. Click New to add a new device.
  1. Select a device from the Device drop-down list for which the report needs to be generated.
    NOTE: You can add multiple devices and generate a Cost Center report.
  1. Enter values into the following columns:
    a. Select the required measurement point from the drop-down list under the Measurement Point (Energy) column.
    b. Unit
    c. Factor
    d. Converted Unit
    e. Select the required Medium from the list.
    f. Select a Cost Center from the list of available cost centers.
    g. The Weighing Factor displays as configured. It is the proportional assignment of the counted consumption values for the selected cost center, expressed as a decimal factor.
    h. Select the required measurement point from the drop-down list under the Measurement Point (Power Demand) column.
    i. Unit
    j. Factor
    k. Converted Unit
  1. Click Save .
    NOTE: If the selected measurement point is not archived, a warning message will be displayed. You can save the report definition with warning. However, if the measurement points are not archived, the generated reports will not have any values.
  • The Save Object As dialog box displays.
  1. Enter a name and description and click OK.
  • The Cost Center report definition is configured.
