Configure the Energy Analysis Report

  1. You have selected the Energy Analysis report type for configuration.

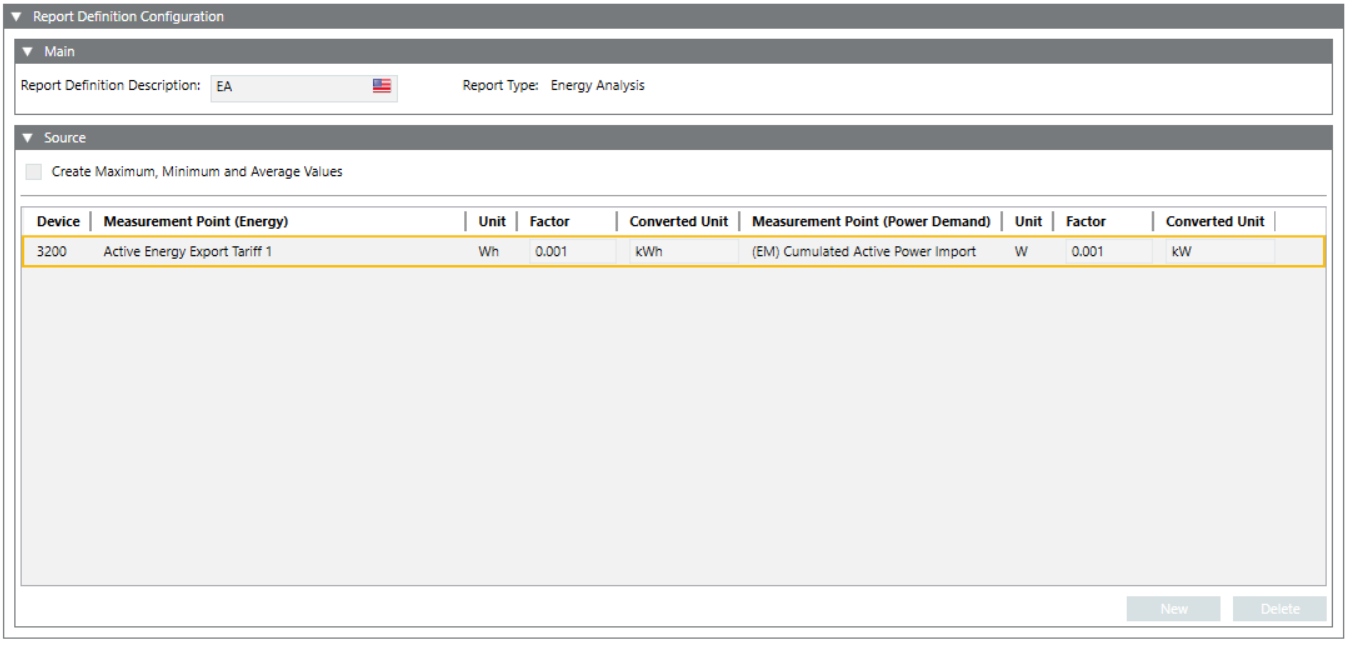

  • The Report Definition configuration page displays.
  1. In the Source expander, select the Create Maximum, Minimum and Average Values check box.
  1. Click New.
  1. Select a device from the Device drop-down list for which the report needs to be generated.
  1. Enter values into the following columns:
    a.     Select the required measurement point for which the report needs to be generated from the drop-down list under the Measurement Point (Energy) column.
    NOTE: You can configure only one device and generate a Energy Analysis report.
    b. Unit
    c. Factor
    d. Converted Unit
    e. Select the required measurement point for which the report needs to be generated from the drop-down list under the Measurement Point (Power Demand) column.
    f. Unit
    g. Factor
    h. Converted Unit
  1. Click Save .
    NOTE: If the selected measurement point is not archived, a warning message will be displayed. You can save the report definition with warning. However, if the measurement points are not archived, the generated reports will not have any values.
  • The Save Object As dialog box displays.
  1. Enter a name and description and click OK.
  • The Energy Analysis report definition is configured.
