Configure the Load Duration Report

  1. You have selected the Load Duration report type for configuration.

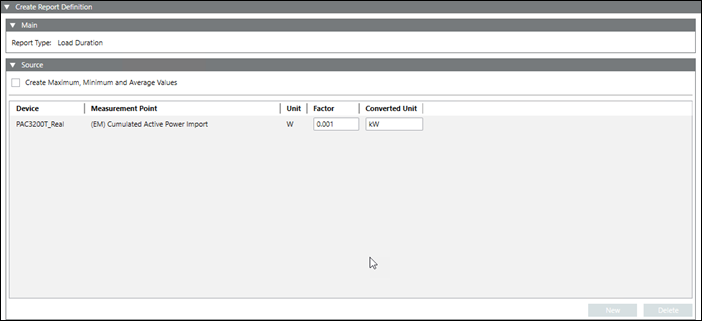

  2. The Report Definition configuration page displays.
  3. In the Source expander, select the Create Maximum, Minimum and Average Values check box.
  4. Click New.
  5. Select a device from the Device drop-down list for which the report needs to be generated.
    NOTE: You can add only one device to the Load Duration report.
  6. Enter values into the values following columns:
    a. Select the required measurement point for which the report needs to be generated from the drop-down list under the Measurement Point column.
    b. Unit
    c. Factor
    d. Converted Unit
  7. Click Save .
    NOTE: If the selected measurement point is not archived, a warning message will be displayed. You can save the report definition with warning. However, if the measurement points are not archived, the generated reports will not have any values.
  8. The Save Object As dialog box displays.
  9. Enter a name and description and click OK.
  1. The Load Duration report definition is configured.
