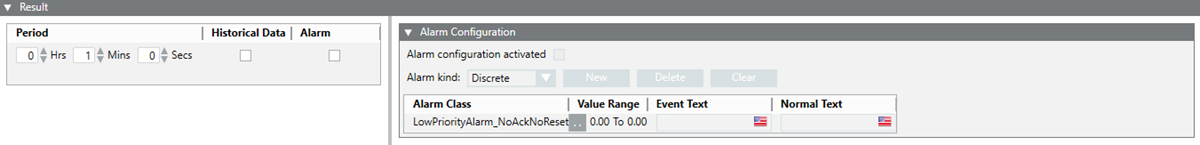

Result Expander

The fields displayed in this expander differ according to the selected device.

  • Period: Specify the time period for which the average value is to be calculated for the device.
  • Historical Data: Select the Historical Data checkbox if you want to calculate the average value on the basis of historical data.
  • Alarm: Select the Alarm checkbox to to setup alarm configuration for the device.
  • Alarm Configuration: Allows you configure alarms:
    • Alarm configuration activated: Select this checkbox to activate the alarm for the corresponding measuring point.
    • Alarm kind: Allows you to choose the type of alarm to be activated.
    • New: Allows to add new rows with default alarm class and values.
    • Delete: Allows you to delete the selected alarm row.
    • Clear: Allows you to remove all alarm conditions from the table and reset the default alarm class.
    • Alarm Class: The alarm class to be enabled for an event.
    • Alarm Class Operator:
    • For Discrete: .. : In range, !.. : Not in range , || : OR, !|| : NOR
    • For Continuous: > : Greater than , >= : Greater than or equal to , < : Less than, <= : Less than or equal to
    • AlarmValue: The value, or range of values, for which an alarm is to be issued.
    • EventText: The text to display when the alarm is issued.
    • NormalText: The text to display when the alarm ceases.
    • UpperHysteresis: The upper range for the alarm value beyond which alarms will be generated.
    • LowerHysteresis: The lower range for the alarm value below which alarms will be generated.
  • Formula: Enter the formula and ensure that the formula is syntactically correct. Some examples of syntactically correct formulas are, p1 + p2 + p3, (p1 + p2) / 1000, (p1 || p2) && p3. This is a mandatory field.
  • Target Value: Enter a target value. The target value acts as a reference value for the KPI. The target value is not used for any KPI calculations but is used in configuring the range associated with the KPI.
  • Calculation Interval: Select a calculation interval from the drop-down list. Depending on the selected interval, the KPI will be calculated every 15 Minutes, Hourly, Weekly, Monthly and Yearly.
  • Gauge: Select the range of values along with the color code for the corresponding measurement points in the gauge section. The default range is from 0 to 1000.
    Minimum <=Limit 1 ; Limit 1 <= Limit 2 ; Limit 2 <=Maximum.
