Configure Driver Settings

  1. You are in step 4 of 8.
  2. You selected a new driver.

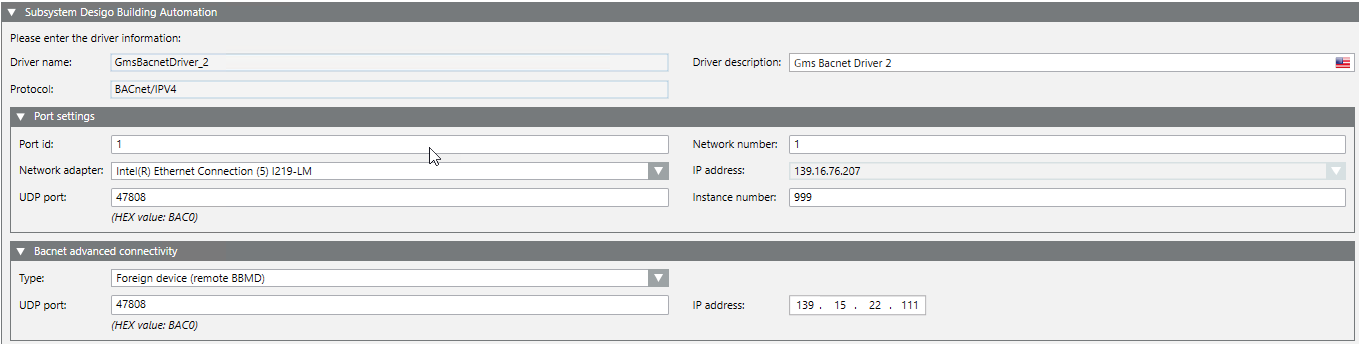

  1. In the Subsystem Desigo Automation Network expander, enter a name in the Driver description field.
  2. In the Port settings expander, enter the following data:
    • Port ID
    • Network number
    • Network adapter from the drop-down list
    • IP address (is taken over)
    • UDP port
    • Instance number
  3. In the BACnet Advanced Connectivity expander, enter one of the following options in the Type drop-down list:
    • None
    • Foreign device
      a. In the UDP port field, enter the port number.
      b. In the IP address field, enter the address.
    • BBMD
      a. Click Add.
      b. Enter the IP address, UDP port and Subnet mask.
  4. Click Next Page .
    Note: The driver is started automatically prior to data import.
