Check the List of Selected Maps and Run the Import
- You are on page 5 of 5: Run Import.

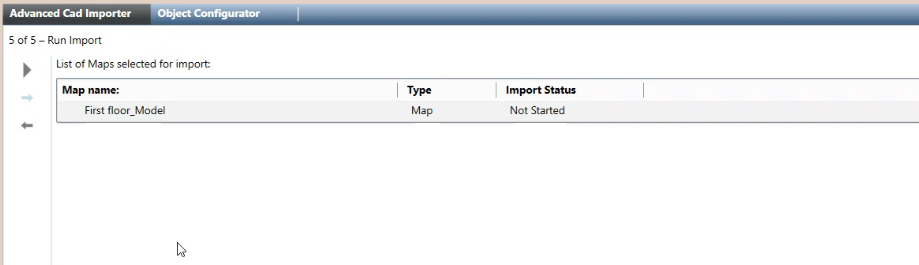

- The list of the CAD drawings to import displays.
- Check the lists of maps you are about to import.
- (Optional) If you want to modify any item of the import list, click Previous
to go back. After the required modifications, press Next
to reach this final page again.
- Click Start
.
- A confirmation message displays.
- Click Yes.
- The import procedure starts.
- In System Browser, graphics are created/updated in the Graphics subtree of the Application View.
- When the import procedure completes, the Import Summary dialog box displays and shows the number of items successfully imported as well as the number of warnings and errors.
- Click Summary to display the summary log file: [drive]:\Users\[username]\AppData\Local\Temp\AdvancedCadImport_mm-dd-yyyy_nn.txt.
The file provides a report that indicates errors and warnings. - Click Details to display the detailed log file: [drive]:\Users\[username]\AppData\Local\Temp\AdvancedCadImport_Results yyymmdd hhmmss.txt. The CSV file contains a record of all actions performed.
- For examples of log files, see Advanced CAD Importer Log Files.
- (Optional) In case of errors, you can click Previous
, correct the settings as necessary, and try again.
See Advanced CAD Importer Troubleshooting and Advanced CAD Importer Compatibility and Limits.
