Configure Assets Mapping

  1. In the Event Manager Configurator, in the menu at the top of the window, select Advanced and then Assets Mapping.
  2. In GMS System ID, select the ID of the system whose object identifiers you want to export.
  3. In Select a View, choose the management system view from which you want to select the objects.
  4. The area below populates with the view of management system objects.
  5. Expand the view as necessary and select the objects you want to export.
  6. Drag the object to the table in the Assets Mapping pane, under the GMS Point Ref column.

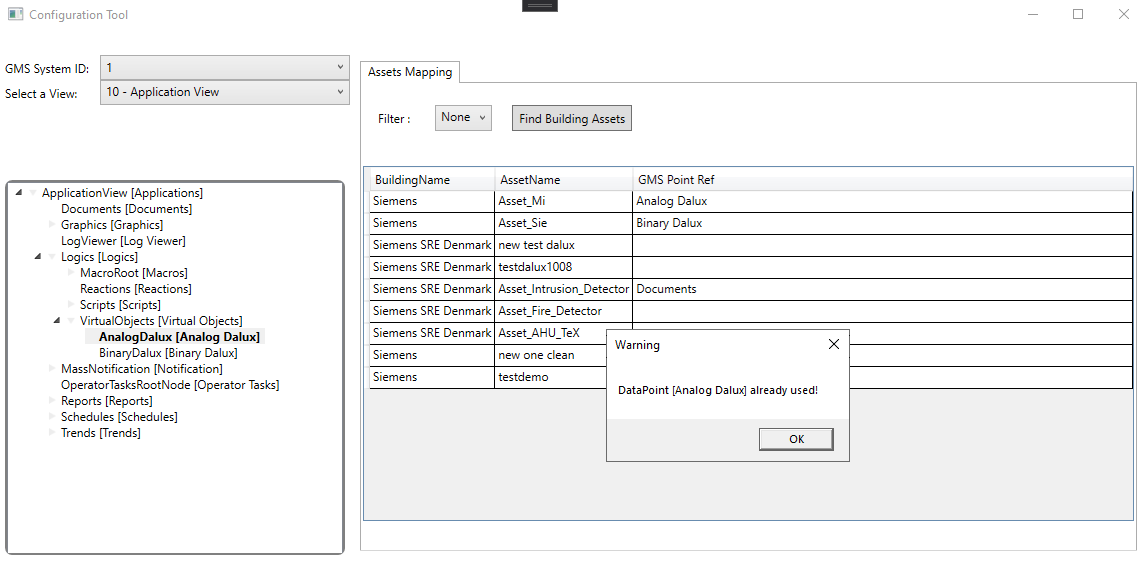

    NOTE: In the image below, note the warning message that appears if you try to map an object twice.
  7. Close the Configuration Tool and select Yes to save the list of selected objects that will be the reference point for sending Dalux FM tickets.
  1. The BuildingAssets.config file is created or updated.
