Export Nodes Data

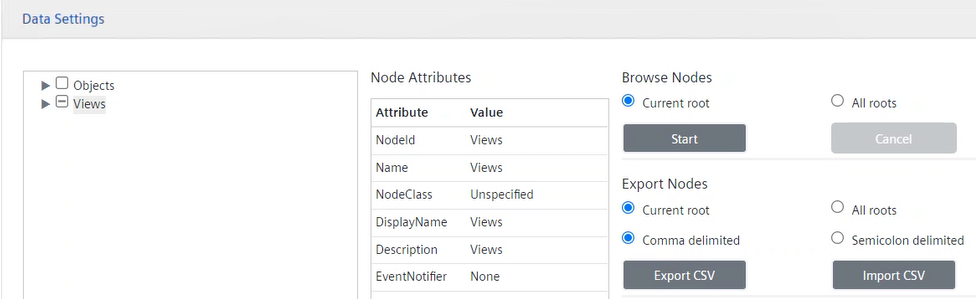

  1. In the OPC UA Client Configuration section, click Data Settings.
  2. Select the desired root node (Objects or Views).
  3. Under Export Nodes, you can specify the export details.
  5. Set for which roots the export of all nodes will be carried out:
  6. Current root (default; Objects or Views)
  7. All roots (both Objects and Views).
  8. Set the delimiter to be used in the file to be exported:
  9. Comma
  10. Semicolon
  11. Click Export CSV.
    • If prompted to save the changes, click Save in the indicated section, and click again Export CSV.
  12. In the Save As dialog box, replace the predefined file name with a new one to save the setting in a new file. Alternatively, select an existing file to overwrite its configuration. Then click Save.
