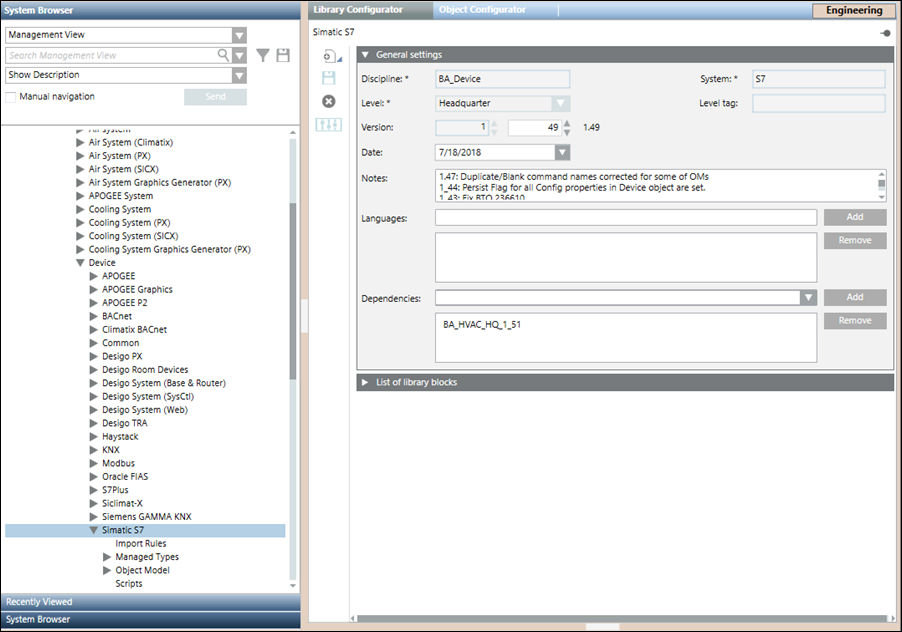

S7 Librarian Configuration Workspace

The Simatic S7 library contains the default set of data type definitions and related object models supported by the current version of the system.

Only S7 Data Types defined in the Simatic S7 Object Model library can be used to import S7 configuration CSV data.

Simatic S7 Supported DataTypes

S7 Data Type

Bit Length

BOOL

1

CHAR

8

BYTE

8

WORD

16

DWORD

32

INT

16

DINT

32

REAL

32

S5TIME

16

TIME

32

TIME OF DAY

32

DATE

16

DATE AND TIME

64

STRING

X

S7Timer

16

S7Counter

16

Simatic S7 Datatypes Mapping

Simatic S7

Management Station

S7 Data Type

Valid Display Format

Bit Length

Memory

S7 Data Type
in Management Platform Library

DB

Data
Block

M

Flag

I

Input

PI

Periphery Input

O

Output

PO

Periphery

Output

S7 Types
(all 12 S7 elementary objects have Input[RO]- Output[RW] variants) ->summary 24 objects

BOOL

X

X

X



X



1

BIT

GMS_S7_BA_BOOL_1

CHAR

X

X









8

BYTE

GMS_S7_BA_CHAR_1

BYTE

X

X

X

X

X

X

8

BYTE

GMS_S7_BA_UINT_1
OR
GMS_S7_BA_ENUM_1

WORD

X

X

X

X

X

X

16

WORD

DWORD

X

X

X

X

X

X

32

DWORD

INT

X

X

X

X

X

X

16

WORD

GMS_S7_BA_INT_1

DINT

X

X

X

X

X

X

32

DWORD

REAL

X

X

X

X

X

X

32

DWORD

GMS_S7_BA_REAL_1

S5TIME

X

X









16

WORD

GMS_S7_BA_S5TIME_1

TIME

X

X









32

DWORD

GMS_S7_BA_TIME_1

TIME OF DAY

X

X









32

DWORD

GMS_S7_BA_TIME_OF_DAY_1

DATE

X

X









16

WORD

GMS_S7_BA_DATE_1

DATE AND TIME

X











64

-

GMS_S7_BA_DATE_
AND_TIME_1

STRING

X











x

-

GMS_S7_BA_STRING_1

S7 Timer & Counter
(only Input variants) -> summary 2 objects

S7Timer













16

CPU

GMS_S7_BA_S7TIMER_1

S7Counter













16

CPU

GMS_S7_BA_
S7COUNTER_1

Import Rules

Import Rules provide the framework of rules for importing S7 objects into the management station. They allow you to configure the rules for importing the object definitions for the objects of a particular S7 family. You can configure the import rules from the Import Rules folder in the S7 library. Before proceeding with the configuration, you must ensure that the S7 library is customized to the headquarter level as the importer reads and sets the rules from the headquarter level only.

Each Import Rules library element contains the rules for a specific product family (such as S7 and so on).

Using Import Rules, you can define the objects and properties for the import rules using the Objects and Properties expander and define instances for the attributes mapper. You can create another object with Copy Object and delete an object with Remove Object. When you save import rules, they are automatically activated.

Standard Import Rules

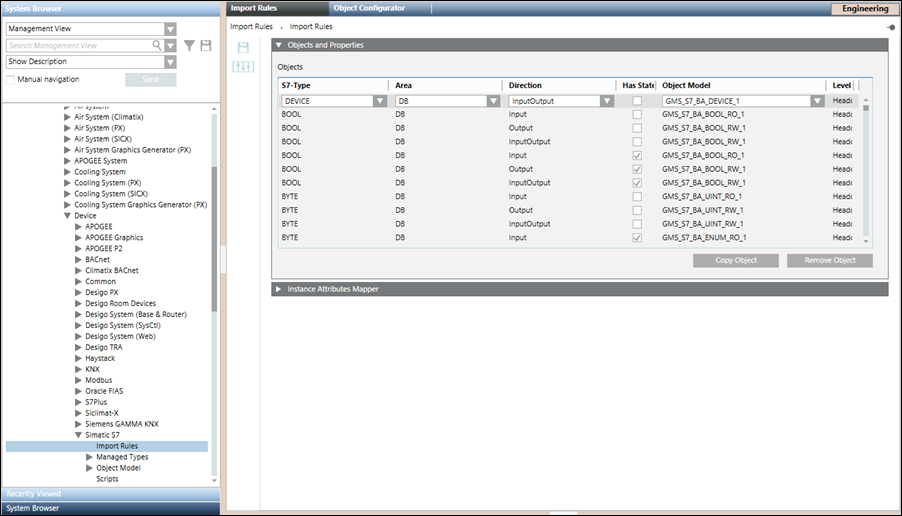

You can configure the rules for importing the object definitions for the objects of a particular S7 family and the system data type functions associated with those objects from the Import Rules tab. You can access this tab from the Management View by navigating to Project > System Settings > Libraries > L1-Headquarter > Global > S7 > Import Rules.

Each Import Rules library element contains the rules for a specific product family (such as S7 and so on).

Using Import Rules, you can define the objects and properties for the import rules using the Objects and Properties expander. You can create another object with Copy Object and delete an object with Remove Object.

Import Rules Toolbar

Icon

Name

Description

Save

Save any changes.
NOTE: Saving the imports rules also activates them.



NOTICE
Modifying the Import Rules

Modifying the Import Rules can seriously affect the system's behavior and must always be done by a qualified system librarian.

Objects and Properties Expander for Standard Import Rules

The Objects and Properties expander allows you to set the standard Import Rules.

These rules are responsible for mapping the system defined object models to the S7 data types. They also define the Function Codes applicable to the particular data type and assign the direction of communication for a field point of an object model.

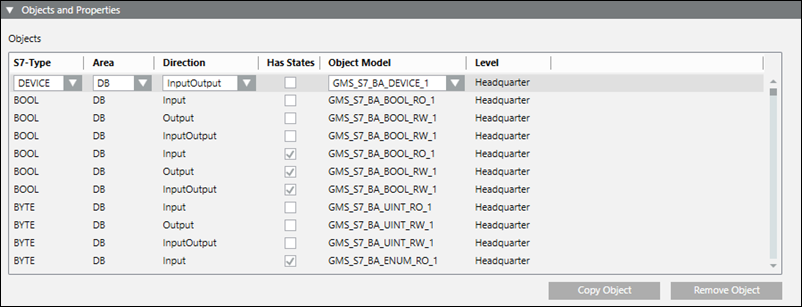

For example, consider the first row in the following screenshot.

Suppose, in the CSV, you specify BOOL as DataType, DB as Area , Input (I) as the Direction and assign a textgroup in StateText column, then while creating the instance, the Importer will create an instance of GMS_S7_BA_BOOL_RO_1 and assign Bool as TransformationType in the address configuration.

Objects and Properties Expander Fields



Description

S7-Type

Displays the S7 elementary types (objects) contained in the S7 CSV file.

Area

Enter the S7 data type area.

Direction

Displays the directions of the object, Input, Output, or InputOutput.

Has States

Indicates whether or not the object has an associated StateText.

Object Model

For each S7 object type, you can select or edit a specific object model.

Level

Displays the Headquarter, Country, Region, or Project.

Copy Object

Copy the selected object to the table.

Remove Object

Remove the selected object from the table.

You can change the configuration of existing objects, create new entries, or removed unwanted object entries.

NOTE:
The customization does not impact the standard import rules since the import rules are not copied to a higher priority level. The Importer reads and sets the rules from the headquarter level only.

S7Type

Object Importer Type

PVSSType (Assignment after import)

GMSType (Engineering)

BOOL

uint

PvssUint

GmsEnum

BYTE

uint

PvssUint

GmsUint (to assign a unit text to the property)

GmsEnum (to assign a state text to the property)

CHAR

string

PvssString

PvssString

DATE

time

PvssTime

PvssTime

DATE AND TIME

time

PvssTime

PvssTime

DINT

int

PvssInt

GmsInt

DWORD

uint

PvssUint

GmsUint (to assign a unit text to the property)

GmsEnum (to assign a state text to the property)

INT

int

PvssInt

GmsInt

REAL

float

PvssFloat

GmsReal

S5TIME

uint

PvssUint

GmsDuration

S7COUNTER

uint

PvssUint

GmsUint

S7TIMER

uint

PvssUint

GmsDuration

STRING

string

PvssString

PvssString

TIME

int

PvssInt

GmsInt

TIME OF DAY

uint

PvssUint

GmsDuration

WORD

uint

PvssUint

GmsUint (to assign a unit text to the property)

GmsEnum (to assign a state text to the property)

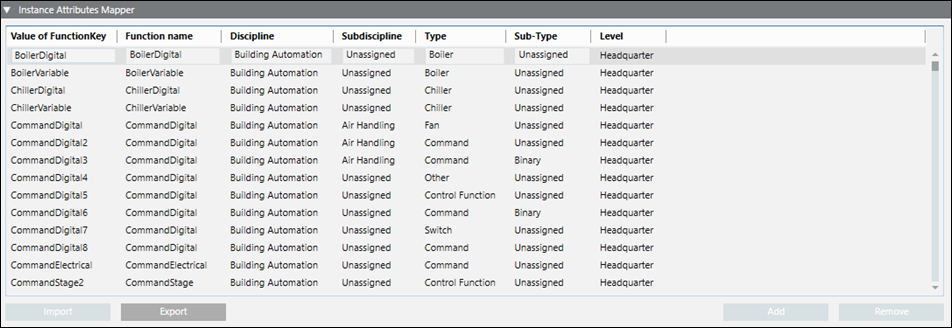

Instance Attributes Mapper Expander

The Instance Attributes Mapper expander allows you to specify the S7 function attribute, and the related instance attributes to which you also assign discipline, subdiscipline, type and subtype.

The value of the function attribute you define is used as a key for the data in the table which contains all the previously defined associations.



Description

Value of FunctionKey

Enter the value of the function that will identify a specific type of instance.
NOTE: This is a mandatory field.

Function name

Specify the name of the function that will be associated with the instances of this type.
NOTE: If you leave the field empty, no function will be associated with this type of instance during the import

Discipline1)

Select the discipline that will be associated with the instances of this type.

Sub-discipline1)

Select the subdiscipline that will be associated with the instances of this type.

Type1)

Select the type that will be associated with the instances of this type

Sub-type1)

Select the subtype that will be associated with the instances of this type.

Level

Displays the Headquarter, Country, Region, or Project

Export

Allows you to export the configuration data contained in the table to a CSV file.
NOTE: You can modify configuration data by opening the CSV file for example with MS Excel and by changing its values.

1) If you choose Unassigned, for Discipline, Subdiscipline, Type, or Sub-type, all of these fields will assume the value of the original Object Model defined for the object.

FunctionKey

FunctionName

Type

Subtype

Discipline

Subdiscipline

Level

BoilerDigital

BoilerDigital

400

0

50

0



BoilerVariable

BoilerVariable

400

0

50

0



ChillerDigital

ChillerDigital

900

0

50

0



Object Models

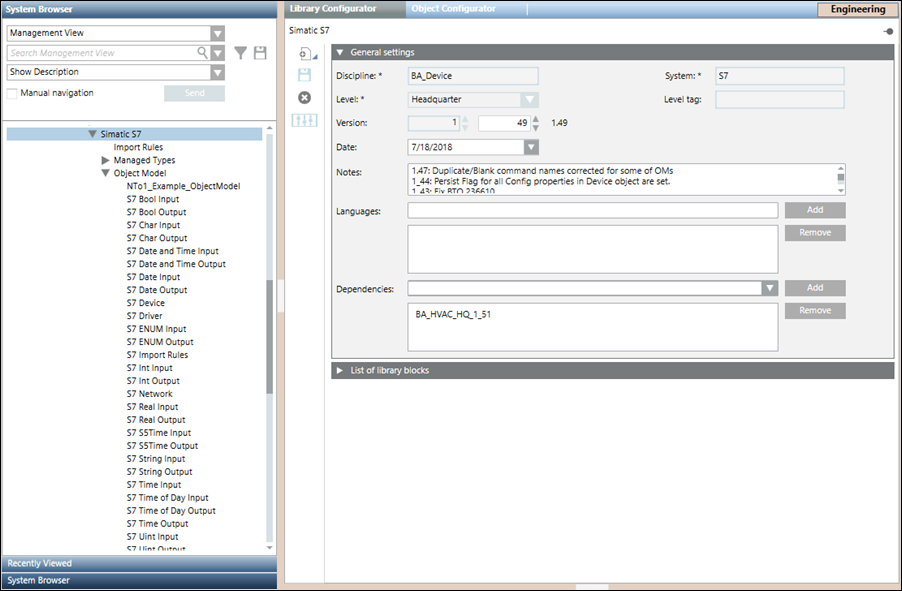

The S7 Data Point Types (DPTs) and the standard object models are imported under the Object Model library at the following location in the Engineering mode, Management View > System Settings > Libraries > BA HQ > Devices > […] > Object Model.



S7 Data Types

Following are the datatypes from the S7 Object Model Library.

S7 Data Type

Range

Min

Max

BOOL

0 (FALSE)

1 (TRUE)

CHAR

Not Applicable

Not Applicable

BYTE

0

255 (16xFF)

WORD

0

65535 (16xFFFF)

DWORD

0

4294967295 (16xFFFFFFFF)

INT

-32768

32767

DINT

-2147483648

2147483647

REAL

-3.402823e+38

3.402823e+38

S5TIME

0H_0M_0S_10MS (No _)

2H_46M_30S_0MS (No _)

TIME

-24D_20H_31M_23S_648MS (No _)

24D_20H_31M_23S_647MS (No _)

TIME OF DAY

0:0:0.0

23:59:59.999

DATE

Not Applicable

Not Applicable

DATE AND TIME

Not Applicable

Not Applicable

STRING

Not Applicable

Not Applicable



NOTE 1:
If multiple alarm configurations are listed in one field, the delimiter is $!
NOTE 2:
Hysteresis cannot be applied to alarm types GE (>=) and LE (<=) because it interferes with their correct functioning.
